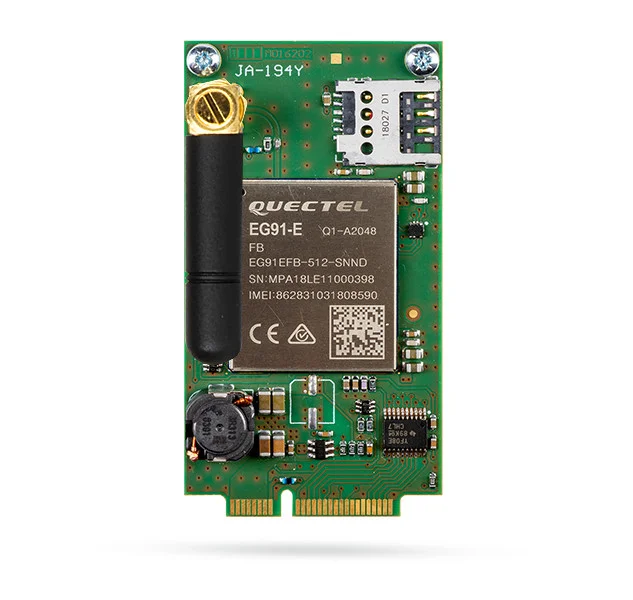

The GSM communicator module is intended to be used with the JA-103K and JA-107K security alarm control panels of the JABLOTRON 100+ series.
A control panel fitted with the JA-194Y module can communicate with an ARC via GSM networks to transmit alarm SMSes and voice messages. It also enables remote configuration of the control panel using F-Link software.
| Module power supply | 9 - 15 V DC (from the control panel) |
| Average current consumption | Approx 9 mA (depends on the GSM signal strength) |
| Peak current consumption | 720 mA |
| GSM communication band | 2G (GSM, EDGE) 900/1800 MHz 3G 900/2100 MHz (B8, B1) 4G (LTE) 800 / 900 / 1800 / 2100 / 2600 MHz (B20, B8, B3, B1, B7) |
| I&HAS classification | Security grade 2/Environmental class II |
| Dimensions | 70 x 37 x 25 mm |
| Weight | 23 g |
| Operational environment | Indoor general |
| Operational temperature | -10 °C to +40 °C |
| Average operational humidity | 75% RH, non-condensing |
| Compatible with RCT (ARC receiver) | According to communication protocols |
| SPT communicator type | SPT type Z (control panel expansion module) |
| AS/SPT interface | Pass-through |
| Supported ATS class/communication protocol | ATS class |
| SP2 | |
| SP3 - SP5 | |
| DP4 | |
| ATS interface | |
| GSM-SMS | |
| GSM-GPRS (IP) | |
| LAN (IP) GSM-GPRS (IP) | |
| Transmission protocol | |
| JABLO SMS | |
| JABLO IP ANSI SIA DC-09 | |
| JABLO IP ANSI SIA DC-09 | |
| Certification body | Trezor Test (No. 3025) |
| In compliance with | EN 62368-1, ETSI EN 301 511, EN 50130-4, ETSI EN 301 489-1, ETSI EN 301 489-52, ETSI EN 301 486-19, ETSI EN 301 908-1, ETSI EN 301 908-13, ETSI EN 301 908-2, ETSI EN 303 413, EN 55032, EN 50665, EN 50581, EN 50131-1, EN 50131-3, EN 50131-10, EN 50136-1, EN 50136-2, ANSI SIA DC-09 |
